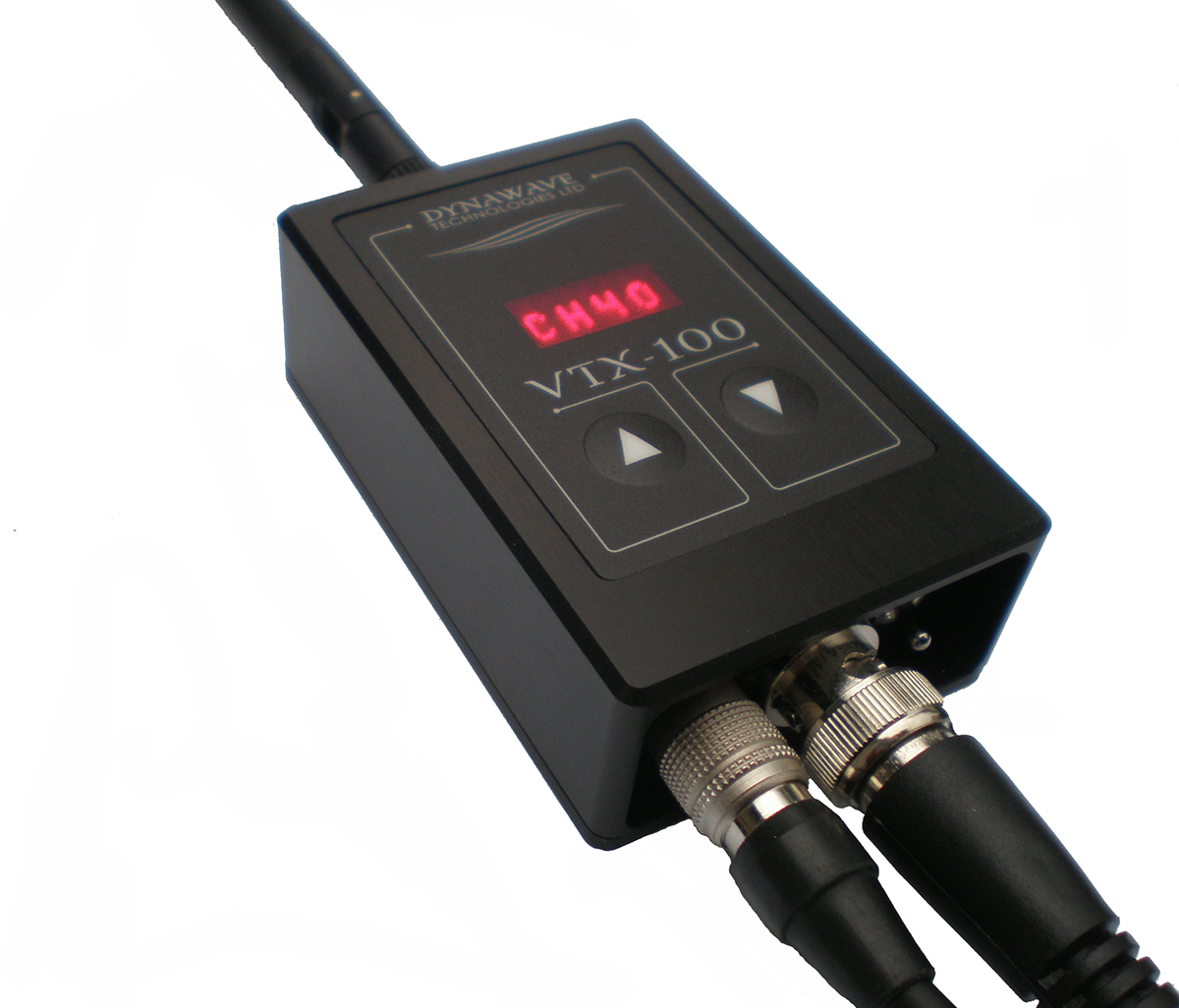

VTX-100 Specifications

• Selectable channels 14 to 69 UHF
• Channel lock feature
• 21 dBm power output
• Range > 100 meters
• 10 to 36 Volts DC input
• Reverse polarity protection
• Less than 280mA power draw at 12VDC
• Low heat
• Video input buffer / stabilizer
• Resistant to vibration
• Hirose 6-pin connector accepts power, video & audio inputs (*Modulus 3000™ compatible)
• BNC composite video input
• SMA-RP antenna connector
• Compact SMA tilt/ swivel ducky antenna
• Recessed panel protects connectors
• Weight 130 grams
• Compact size 3.1″ x 2″ x 1″
• Ruggid CNC anodized aluminum enclosure
• 2-year manufacturer’s warranty
• Manufactured in Canada
